Model D170

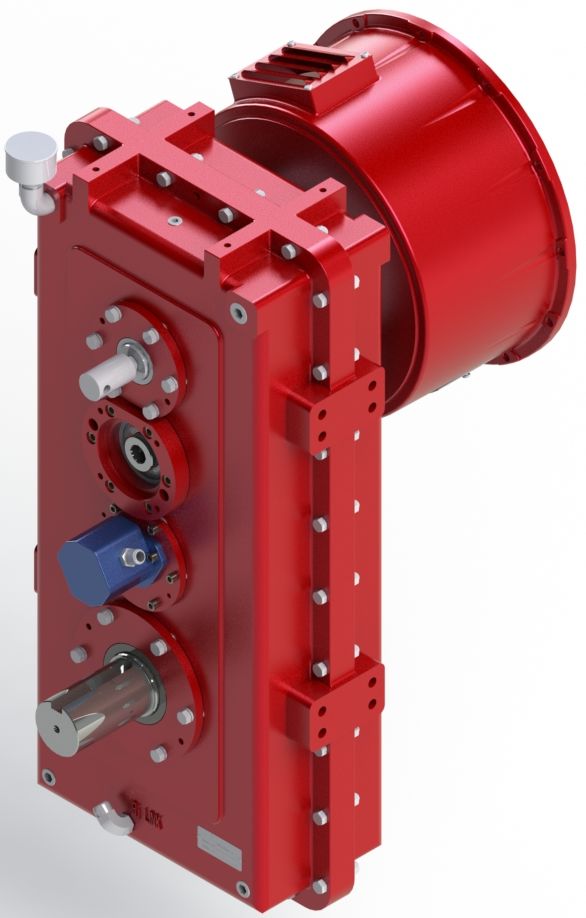

Transfer Case: Model D170
Features include a cast ductile housing with flexible mounting, connections include SAE bell housings or flange connections, a variety of ratios depending on your application, engine or anti-engine rotation. The robust construction is well suited for Oil & Gas applications.
Typical Applications
Oil & Gas
Specifications
Ratios: 1.51 : 1 through 1.81 : 1
Rotation: Engine/Anti-Engine
Max Horsepower: 650 HP
Center Distance: 22.3″
Overall Size: 46″H x 22″W x 31″D
Weight: 1,300 lbs approx.
