Model D244

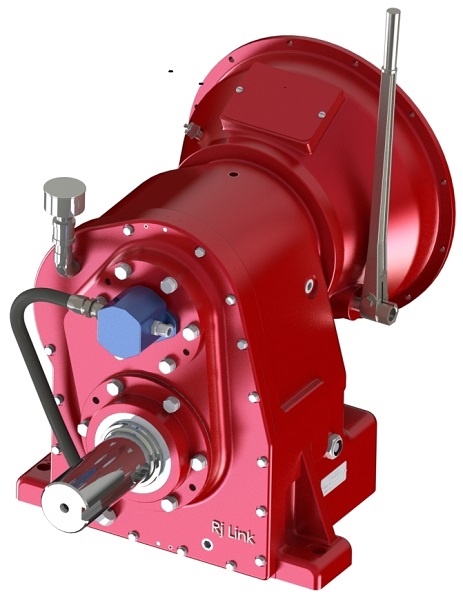

Speed Reducers: Model D244
Features include precision ground gears for increased capacity, a ductile iron housing with the flexible mounting connections, including SAE bell housings or flange connections, a variety of ratios depending on your application, engine or anti-engine rotation.
Typical Applications:

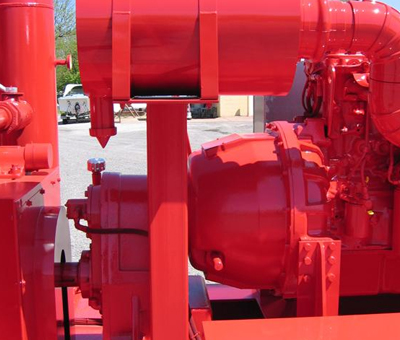

Air Drilling Piston Booster Pumps, Centrifugal Pumps, Frac Blenders
Specifications
Ratios: 1.26 : 1 through 2.96 : 1
Rotation: Engine/Anti-Engine
Max Horsepower: 800 HP
Center Distance: 10.25″
Overall Size: Varies by configuration
Weight: 1,300 lbs approx.
