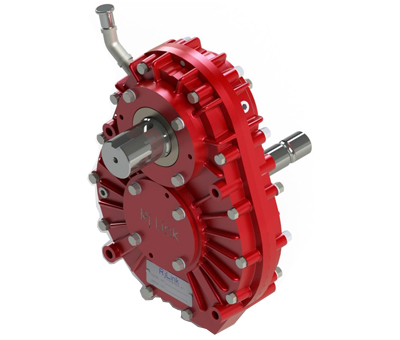

Model D101
Speed Increasers: Model D101
Features include an aluminum housing, numerous input and output shaft configurations including straight shaft with key, tapered shaft and agricultural PTO connection including 540 RPM or 1000 RPM, auxiliary hydraulic pump input or output, anti-engine rotation.
Typical Applications:

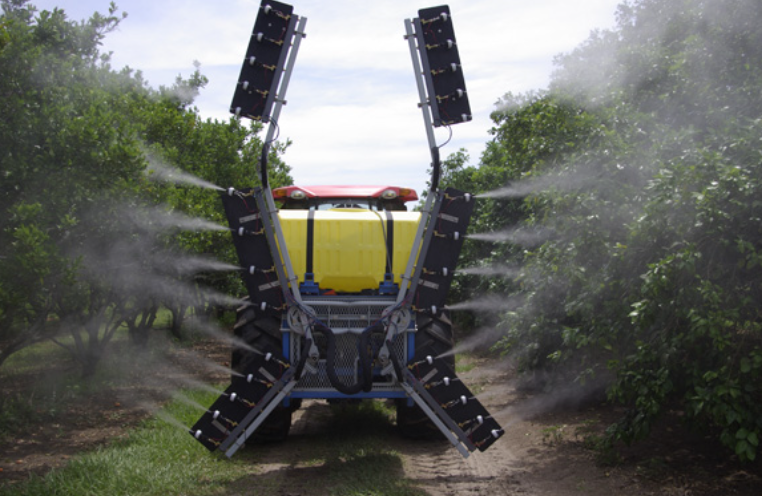

Orchard Sprayer
Specifications
Ratios:1 : 1.19 through 1 : 4.5
Rotation:Anti-Engine
Max Horsepower:125 HP
Center Distance:6.0″
Overall Size:16.5″ H x 12.4″ W x 5.5″ DP
Weight:60 lbs approx.
