Transfer/Utility Panels
ESC designs and fabricates transfer panels and utility panels for sanitary and regulated process environments. These systems help organize process connections, maintain product integrity, support cleanability, and make utilities accessible where needed for production and cleaning operations.
Transfer Panels
Transfer panels can support product transfer and CIP supply functions while helping maintain product integrity and process flexibility. ESC transfer panels can be fabricated with stainless steel tubing, panel face ports, single or looped headers, valves, U-bends, and position feedback systems.
Benefits of ESC Transfer Panels
- Optimize process flexibility while maintaining product integrity
- Isolate a given flow path from other possible combinations
- Eliminate dead ends through double-tube and loop-type headers
- Allow transfer paths to be emptied of product or cleaning solutions using air blowdown, gravity, or both
- Reduce product loss when reconfiguring for the next operation
- Concentrate required physical connections in an accessible, supervised area
- Support cleanroom applications with through-the-wall installation
- Support PLC connection verification with proximity sensors and U-bend magnet assemblies where applicable

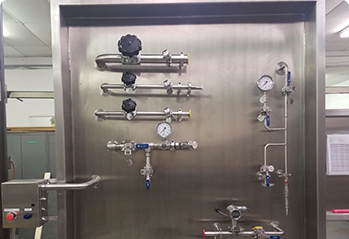

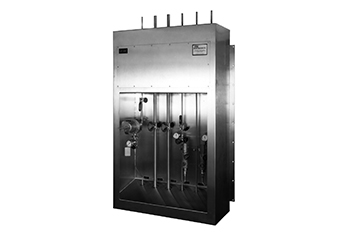

Utility Stations
ESC utility stations can be constructed for ceiling mounting, wall mounting, or free-standing installation. Utility panels can support utilities such as water, steam, gases, electrical power, and communications. Panels can also be combined into multifunctional stations with appropriate separation for the application.
